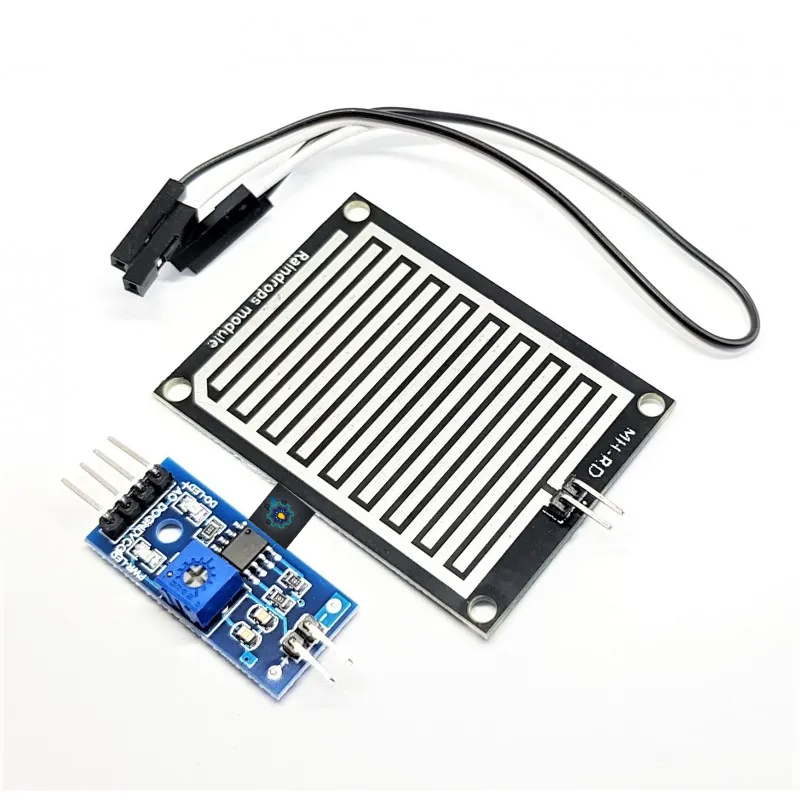

Large Area Rain Sensor DC 3V 5V Weather Raindrops Rainwater Module Rain Sensors With Digital & Analog Output Rain Humidity Detection Sensor

★★★★★
(0)
৳120

Quantity

1
WhatsApp Call to Order

Description

Specification Details
Product Name Large Area Rain Sensor Module
Sensor Type Rain / Raindrop / Rainwater Detection Sensor
Operating Voltage DC 3.3V–5V
Recommended Supply DC 3V / 5V
Sensor Board Material High-Quality FR-04 Double-Sided Material
Sensor Plate Size Approx. 5.5 × 4.0 cm
Surface Treatment Nickel Plated
Features Anti-oxidation, good electrical conductivity, and long service life
Output Type Digital & Analog Output
Digital Output 0 / 1 Digital Switch Signal
Analog Output AO Voltage Output
Sensitivity Control Adjustable via onboard potentiometer
Comparator IC LM393 Wide Voltage Comparator
Signal Quality Clean output signal with good waveform
Driving Capability More than 15mA
Mounting Fixed bolt holes for easy installation
Detection Detects rain, water droplets, and moisture
Applications Weather monitoring, rain detection, smart home, Arduino, robotics, and automatic control systems
Main Feature Large-area sensor plate for improved rain and water detection

Large Area Rain Sensor DC 3V 5V Weather Raindrops Rainwater Module Rain Sensors With Digital & Analog Output Rain Humidity Detection Sensor
