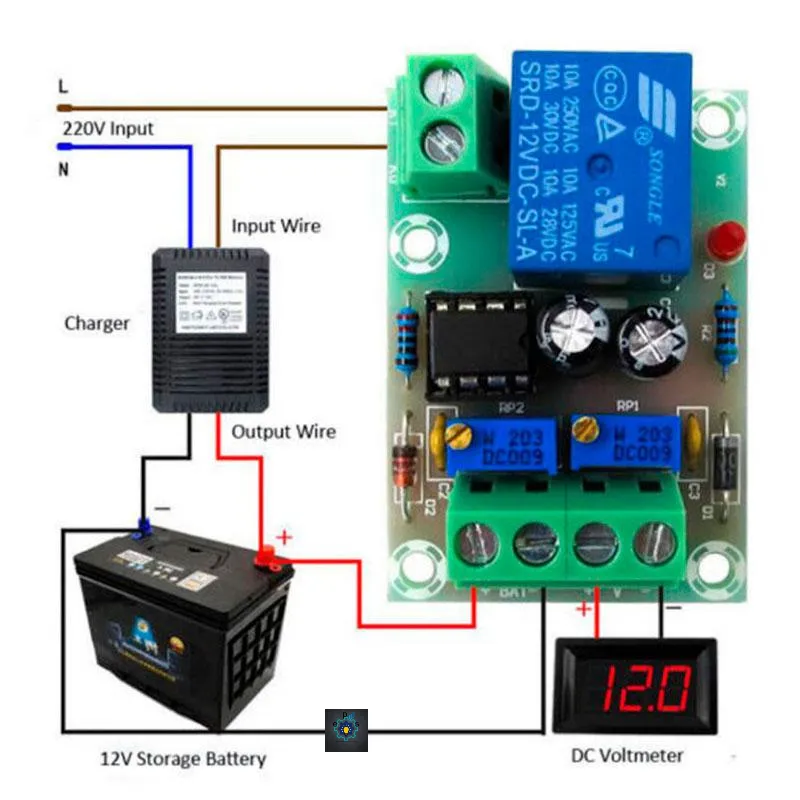

XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Supply Control Module Panel Automatic Charging - solar charge controller

★★★★★
(0)
৳220

Quantity

1
WhatsApp Call to Order

Description

Specification Details
Product Name 12V Charger Power Control Board
Model XH-M601
Power Supply Voltage DC 13.8–14.8V
Relay Operating Voltage 12.4V
Relay Disconnect Voltage 14.8V
Voltage Tolerance ±0.1V
Voltage Detection Method DC Voltmeter
Charging Type 12V Storage Battery
Potentiometer RP1 & RP2
RP1 Function Adjusts battery start-charging voltage
RP1 Adjustment Clockwise: voltage increases; Counter-clockwise: voltage decreases
RP2 Function Adjusts battery charging disconnect voltage
RP2 Adjustment Clockwise: voltage increases; Counter-clockwise: voltage decreases
Board Size 50 × 32 × 18 mm
Application 12V battery charging control
Main Function Automatic control of battery charging via relay
Design Compact voltage detection and relay control module

XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Supply Control Module Panel Automatic Charging/Stop Power - solar charge controller
